Mine R10 Professional 5G Bonding Video Switcher – Ultimate Live Production Control

The Mine-R10 is a high-performance multi-camera video switcher designed for professional live production, broadcasting, and streaming. With seamless switching, advanced AGC (Automatic Gain Control), and real-time effects, it delivers studio-quality video output for events, sports, news, and online content creation.

Key Features:
✔ Simultaneously bond up to 8 network - Built-in 5G module * 2 & Built-in 4G module *2, WiFi, Ethernet, and 2*USB Dongle.
✔ 6-Input Multi-Camera Control – 3 HDMI & 3SDI inputs, and 6 IP streams for flexible production setups.
✔ Seamless Transition Effects – Cuts, fades, wipes, and customizable transitions.
✔ Built-in AGC & Audio Sync – Auto-adjusts audio levels for balanced sound.
✔ Live Streaming & Recording – Direct RTMP output for YouTube, Facebook, Twitch, etc.
✔ Touchscreen & Hardware Controls – Intuitive operation for fast switching.
✔ Portable & Rack-Mountable – Compact design for studio or on-the-go production.

Ideal For:
🎥 Live Events (Concerts, Conferences, Weddings)
📺 Broadcast Studios (News, Talk Shows, Sports)
🎮 Gaming & Esports Streaming
🎤 Corporate & Education Webinars

Upgrade your production workflow with the Mine-R10 – where professional switching meets simplicity.


MINE R10 ADVANTAGES

R10 Features.jpg

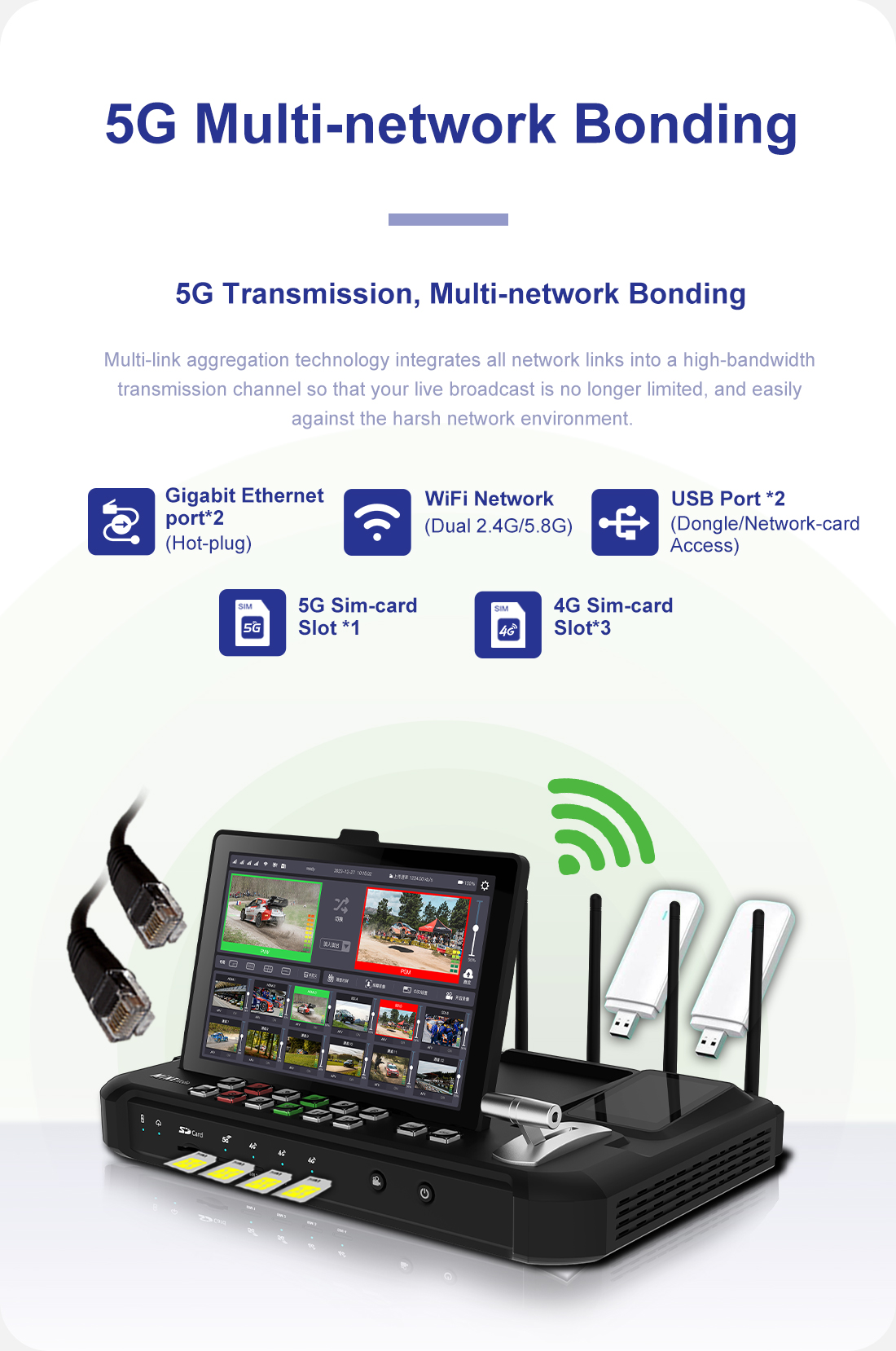

R10 Multi 5G Network

R10 Dual Screen


Mine R10 Basic Parameters

ModelMine R10/R10 Pro
Name5G/4G Bonding Switcher
Video
Input3 HDMI
3 SDI
6 network stream inputs
Resolution1080P/720P@25/30/50/60fps 1080i@50/60fps
Encoding typeH.264 for RTMP / H.265 for recording
Encoding LevelsH.265 Main profile, H.264/AVC High / Main / Baseline Profile
Stream Resolution1920x1080, 1280x720, 960x540, 848x480, 640x360, 480x270
Encoding Video FPS15-60FPS
Encoding Video Bitrateadjustable
Bitrate controlVBR / CBR
Recording resolutionMaximum support 1080p60
TS ProtocolsRTMP(S) / SRT / RTSP
Audio
InputHDMI & SDI embed Audio and 1* Canon audio input
Output1*3.5mm dual-channel audio monitoring
Sample Rates44.1kHz, 48.0 kHz
EncodingAAC
Network
4 SIM SlotsR10 Built-in 5G module * 1 & Built-in 4G module  *3
R10 Pro Built-in 5G module * 2 & Built-in 4G module *2
WiFi2.4G/5.8G dual-band WIFI access
RJ45Gigabit network port
USBExternal 4G dongle *2, USB network card can be used
StorageTF card (maximum 256G)
Power
Power supplyDC12 3A
Battery Capacity7.4V/12000mAh
Maximum consumption25W
System
Control PaneliOS / Android APP
Firmware Updatesupports
Remote managementsupports
Working Environment
Operating temperature-20 to 80 deg C
Storage temperature-40 to 90 deg C
Relative Humidity5% to 90% non-condensing
Dimension & Accessories
Dimension395mm*240mm*50mm
Weight
R10 Packing List.jpg

WHAT'S IN THE BOX


Package includes:
Mine R10 5G Bonding Video Switcher *1
Protective suite case *1
Antenna *6
Power adapter *1
Pin *1
Manual*1
