Mine A319S 5G Bonding SDI Video Decoder

 Video Receiver / Decoder
Mine A319S 5G Bonding SDI Video Decoder
The Mine-A319S is a high-performance 5G bonding SDI video decoder designed for ultra-low-latency, high-quality video transmission in live broadcasting, remote production, and professional streaming applications. It supports multi-channel 5G aggregation, ensuring stable, high-bandwidth video transmission even in challenging network conditions.

Key Features
✔ 5G Bonding Technology – Combines multiple 5G/4G/Wi-Fi connections for higher bandwidth and reliability.
✔ Frame-synchronized SDI Output – Professional 3G-SDI (1080p60) interface for seamless integration with broadcast equipment.
✔ HEVC H.265/H.264 Decoding – Supports high-efficiency video decoding for reduced bandwidth consumption.
✔ Adaptive Bitrate Control – Automatically adjusts video quality based on network conditions.
✔ Mulitple network bonding – Ensures uninterrupted transmission with failover support.
✔ Compact & Portable – Lightweight design for field production and mobile broadcasting.
 Guide      More Docs ...       Contact us
MINE A319S ADVANTAGES
Multi-Network Aggregation SDI Decoder
Mine-A319S-5G-Bonding-4CH-SDI-Video-Decoder
Frame Synchronization

Mine A319S Basic Parameters

ModelMine A319S
Name5G Bonding SDI Video Decoder
Video Decoding
Decoding Channel4 Channels
Maximum Decoding Resolution1080P60P
Video Output Interface3G SDI*4
Decoding Performance4 channels 1080P60
Video Decoding Standard1080p: 1920x1080@25p/30p/50p/60p
1080i: 1920x1080@50i/60i
720p: 1280x720@25p/30p/50p/60p/120p
Video Decoding NormsH.264/H265
Video Encoding
Video Input InterfaceHDMI2.0*1
Maximum Encoding Resolution4K60P
Video Input Standard4K:3840*2160@25P/30P/50P/60P
1080p: 1920x1080@25p/30p/50p/60p
1080i: 1920x1080@50i/60i
720p: 1280x720@25p/30p/50p/60p/120p
Network Interface
EthernetGigabit Ethernet Port *2
Built-in 5GBuilt-in 1*5G Module
WiFi 6Support
USB2 USB Interfaces for 4G Dongle, USB Network Card
Audio Parameter
Audio Input3.5mm Dual-Channel External Audio Input
Audio Output3.5mm Dual-Channel External Audio Output
Audio Intercom4-Segment 3.5mm Audio Intercom Interface
Audio Compression StandardAAC
Audio Sampling Rate44.1K/48K
Audio FormatMP3
Screen Parameter
Screen Size2-Inch HD Touchscreen
Transmission
Network ProtocolSupport RTMP、SRT、RTSP
Storage
Storage FunctionSupport SD card (Up to 512G)
Recording FormatMP4(H.265/H.264+AAC)
File SystemFAT32; exFAT;NTFS
System
Device SystemLinux
MLive APPAndroid 9.0 or iOS 9.0 and above
Power
Power SupplyDC12V 3A
Maximum Power Consumption20W
Working Environment
Operating temperature-20 to 80 deg C
Storage temperature-40 to 90 deg C
Relative Humidity5% to 90% non-condensing
Dimension & Accessories
Dimension217mm*255mm*44mm / 8.54"*10.04"*1.73"
Weight

Mine A319S Applications

- Live News & Sports Broadcasting

- Drone & Remote Camera Feeds

- IP Video Backhaul & Contribution

- Live Event Streaming & Production


Why Choose Mine-A319S?

✅ Stable 5G Bonding – No single-point-of-failure for critical transmissions

✅ Broadcast-Grade Quality – SDI output for professional workflows

✅ Easy Deployment – Plug-and-play operation with MLive App management


Ideal for broadcasters, production teams, and live streaming professionals who demand reliability and flexibility in wireless video transmission.

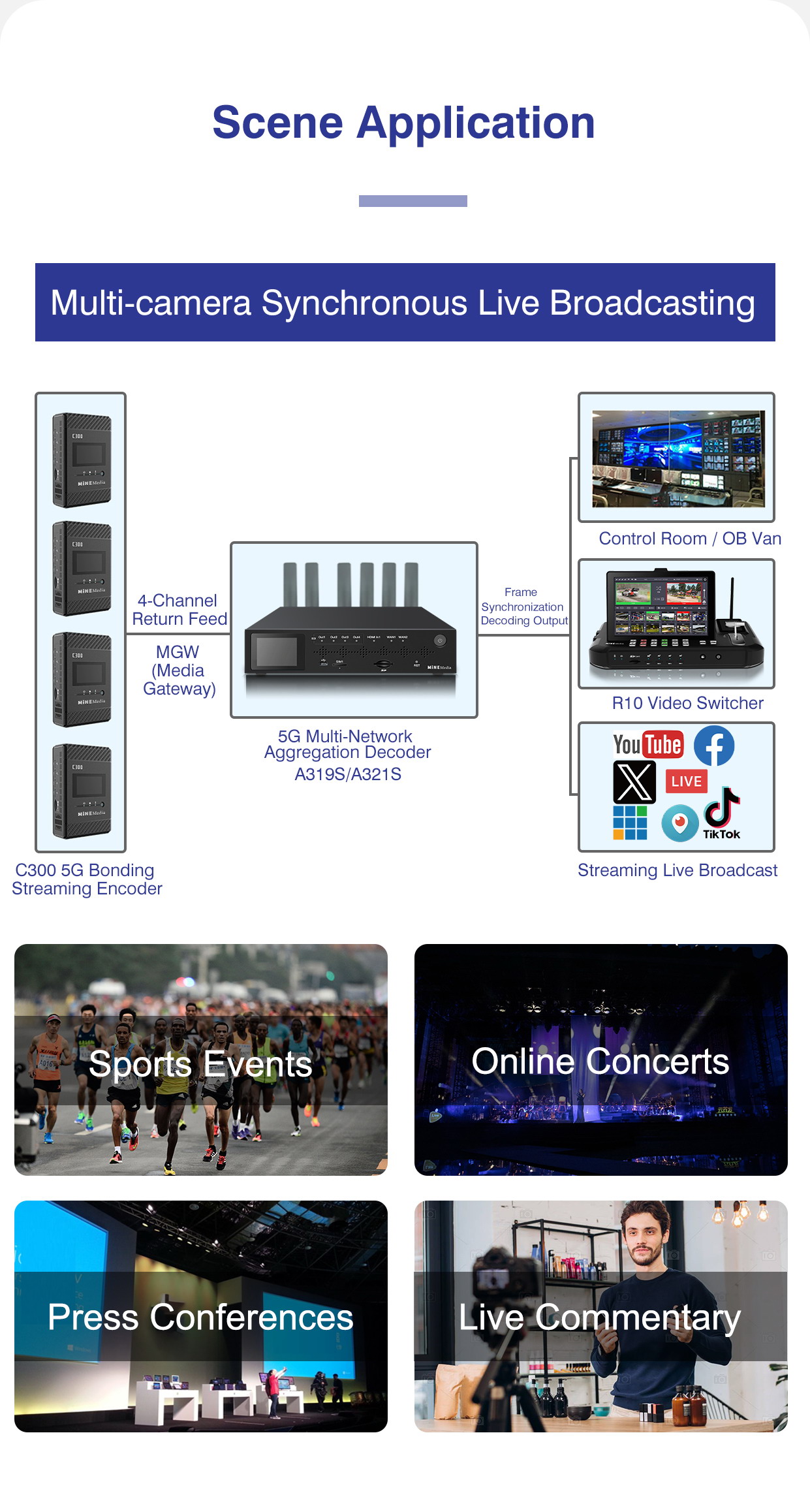

Mine-A319S 5G Bonding SDI Video Decoder Application
Mine-A319S 5G Bonding SDI Video Decoder Application

Contact us for more information
