Mine Q8S 5G Live Bonding Encoder

 Video Encoder
Mine Q8S 5G Live Bonding Encoder
Mine Q8S 5G Live Bonding Encoder is a high-performance H.265/HEVC & H.264/AVC professional video encoder designed for live streaming, broadcasting, and IPTV applications. With advanced network bonding technology and robust hardware architecture, it delivers low latency, high efficiency, and superior video quality for demanding media workflows.

Key Features
✔ Engineered with 6-network bonding (3x SIM, WiFi, Ethernet, USB dongle), it ensures uninterrupted streaming even in unstable network conditions.
✔ Dual-Codec Support – Supports H.265 (HEVC) for 50% bandwidth savings and H.264 (AVC) for broad compatibility.
✔ 1080p@60fps Encoding – High-resolution processing for FHD live streaming and broadcast with HDMI/SDI input.
✔ Low Latency – Ideal for real-time applications like live sports, eSports, and remote production.
✔ Multi-Protocol Streaming – RTMPS, RTMP, SRT, RTSP for flexible distribution.
✔ Multi-Platform Streaming – Push to YouTube Live, Facebook Live, Twitch, etc., simultaneously.

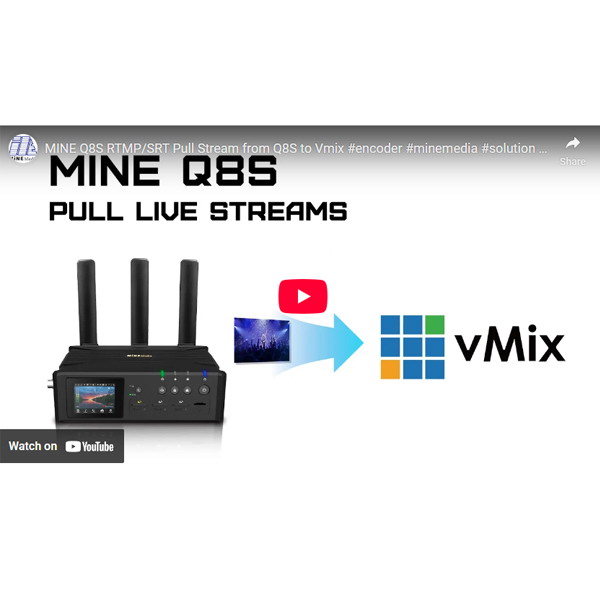

✔ No Public IP Needed – Supports RTMP Pull for direct integration with vMix, OBS, and other production systems.

Why Choose Mine-Q8S?
✅ Reliable & Stable – Industrial-grade components for 24/7 operation.
✅ Easy Integration – MLive App Control/Web Control/Touch-screen Control and compatibility with major media servers.

Experience stable live stream with the Mine Q8S – the ultimate solution for professional broadcasters and streaming providers.
MINE Q8 ADVANTAGES
Review
Start the whole recording with the record button, support the highest 1080P high-definition video recording, and facilitate storage, backup, and post-editing synthesis.
MP3
Audio in MP3 format can be imported into the device, and live songs can be selected through the device or M Live App and played with background music to make the live broadcast more.

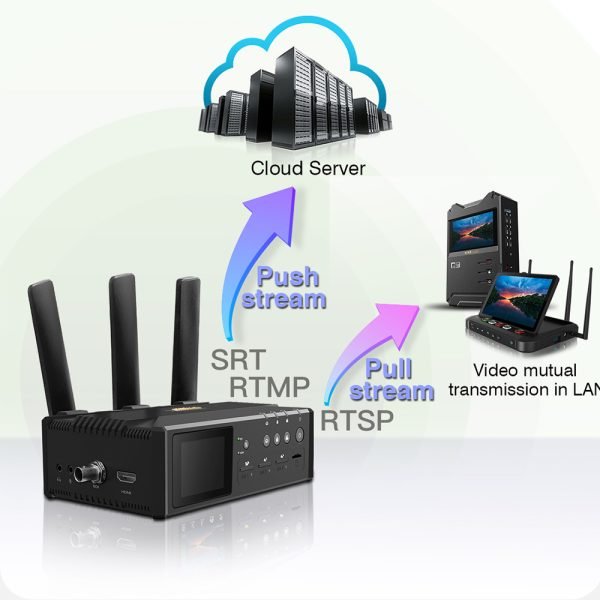

Streaming

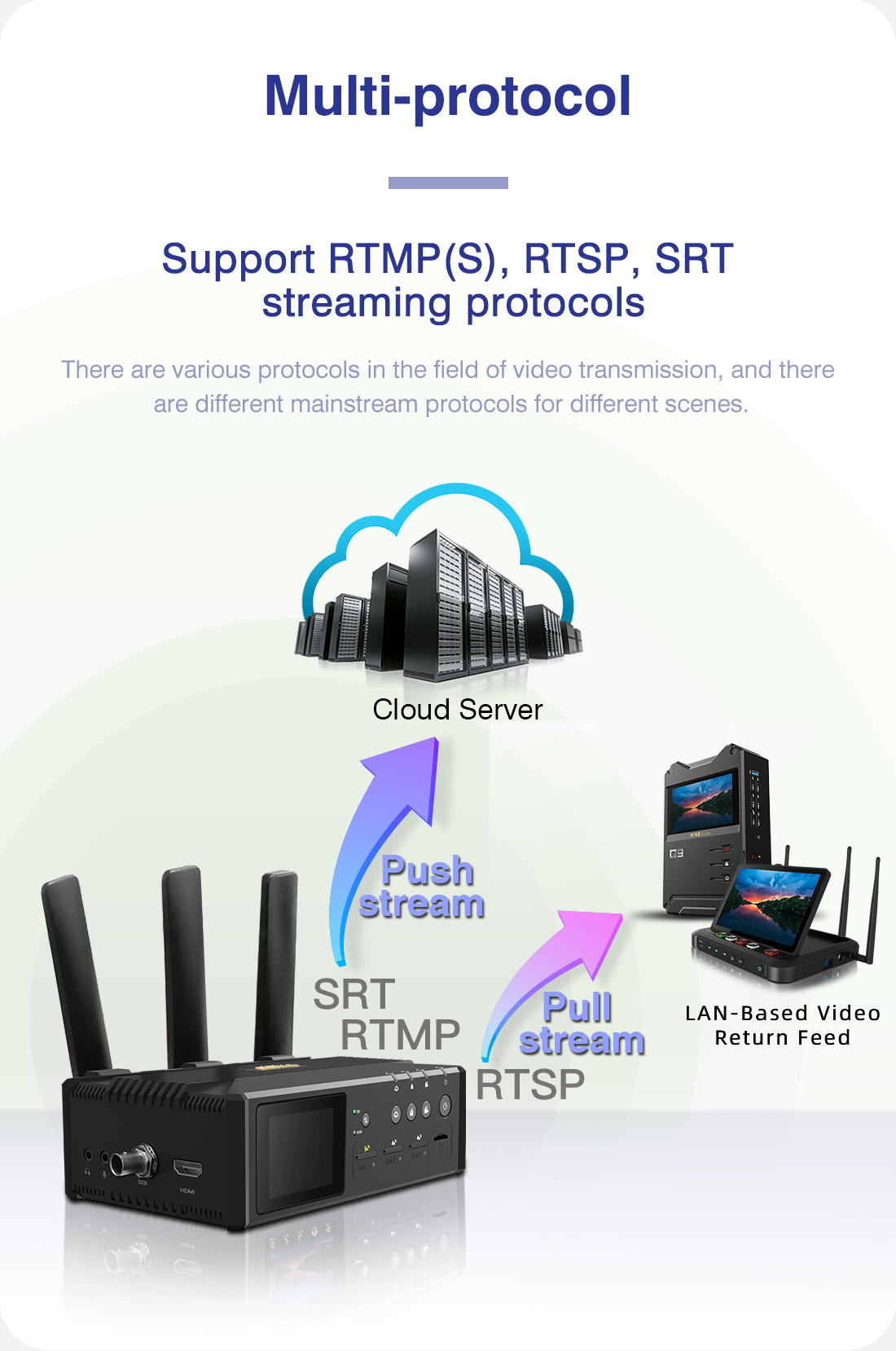

A variety of streaming media protocols to meet more application needs. Mine Q8 support multi-streaming protocols such as SRT, RTMP(S), and RTSP protocol to meet clients different requirements.

Mine Q8S Basic Parameters

ModelMine Q8S
Name5G/4G Bonding Encoder
Video
Input1* HDMI & 1* SDI
Resolution1080P/720P@25/30/50/60fps 1080i@50/60fps
Encoding typeH.264 for RTMP / H.265 for recording
Encoding LevelsH.265 Main profile, H.264/AVC High / Main / Baseline Profile
Stream Resolution1920x1080, 1280x720, 960x540, 848x480, 640x360, 480x270
Encoding Video FPS15-60FPS
Encoding Video Bitrateadjustable
Bitrate controlVBR / CBR
Recording resolutionMaximum support 1080p60
TS ProtocolsRTMP(S) / SRT / RTSP
Audio
InputHDMI & SDI embed Audio and 1* 3.5mm dual-channel external audio
Output1*3.5mm dual-channel audio monitoring
Sample Rates44.1kHz, 48.0 kHz
EncodingAAC
Network
3 SIM SlotsBuilt-in 5G module * 1 (Optional) & Built-in 4G module * 2 Or *3
WiFi2.4G/5.8G dual-band WIFI access
RJ45Gigabit network port
USBExternal 4G dongle, USB network card can be used
StorageTF card (maximum 256G)
Power
Power supplyDC12 3A
Battery Capacity7.4V/7200mAh
Maximum consumption18W
System
Control PaneliOS / Android APP
Firmware Updatesupports
Remote managementsupports
Working Environment
Operating temperature-20 to 80 deg C
Storage temperature-40 to 90 deg C
Relative Humidity5% to 90% non-condensing
Dimension & Accessories
Dimension162mm*102mm*53.4mm
Weight735g

Applications

- Live Broadcasting (TV stations, OTT platforms)

- IP Video Contribution (news, sports, events)

- Video Conferencing & Remote Production

- Cloud Streaming & Multi-CDN Distribution

Q8-solution

Q8-solution

WHAT’S IN THE BOX


Package includes:
Q8 4G Live Bonding Encoder (Dual HDMI/SDI)*1
Protective suite case*1
Back-bag (Optional)*1
HDMI cable*1
SDI cable*1
Antenna*3
Power adapter*1
Shoe mount*1
Pin*1
Manual*1

Mine Q8 Size


Contact us for more information
