Mine A5 4G Bonding Streaming Camera

 Live Camera
Mine A5 4G Bonding Streaming Camera
Mine A5 Live Camera – The Ultimate Outdoor Adventure Live Streaming Companion
Professional-Grade Live Streaming for Sports & Outdoor Adventures

TheMine A5 Live Camera is a rugged, high-performance sports camera engineered for adventurers, athletes, and explorers who demandcrystal-clear, real-time streaming in the most challenging environments. Whether you're climbing mountains, cycling through rugged terrain, or capturing live sports events, the Mine A5 ensures seamless, high-definition broadcasting with ultra-reliable connectivity.

Key Features
1. Mulit-network bonding for Live Stream.
-2* 4G LTE cellular
-1* USB Dongle, Wifi and Ethernet.

2. Ultra HD Live Streaming (1080p/4K Optional)
-Smooth, Lag-Free Broadcasts: Advanced encoding ensures stable streaming even in low-bandwidth conditions.
-Multi-Platform Compatibility: Directly push live feeds toYouTube, Twitch, Facebook Live, and RTMP(S)-supported platforms.
-Low-Latency Mode: Ideal for real-time interaction with your audience during live events.

3. Professional-Grade Wide-Angle Lens
-Capture the Full Scene: Perfect for panoramic landscapes, group sports, or fast-moving action shots.
-Minimal Distortion: Advanced lens correction keeps images natural and immersive.
 Guide      More Docs ...       Contact us
MINE A5 ADVANTAGES
A5 4K 4G Bonding Streaming Camera
4K Encoding High-definition quality picture, resolution can up to 2160@30fps.
Recodring
Support real-time live stream & recording at the same time, and support video review.
A5 4G Bonding Streaming Camera

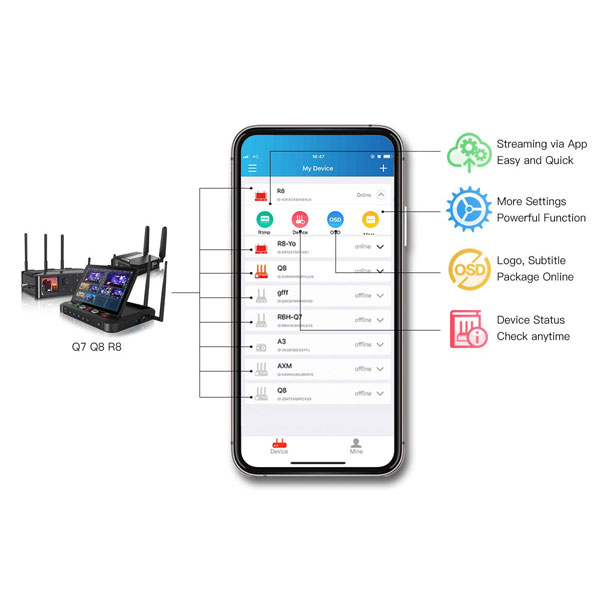

All Mine Devices can be remotely controlled through the mobile App or mini-program, achieve between devices in ad hoc network fast match, streaming starts quickly.

Mine A5 Basic Parameters


ModelMine A5
Name4G Bonding Streaming Camera
OpticalParameters
Sensor typeSONY CMOS
Sensor size1/2.8 inch
Effective pixels8 mega pixels
Camera angleopposite angle 118.5 degreesl
Horizontal 110.5 degrees
Vertical 76.3 degrees
Focal length1.98mm
Lens work object distancePrime lens, 1m to ∞
Screen
Screen size3 inch
Screen characteristicsTouch-screen
Network
2 SIM SlotsBuilt-in 4G module * 2
WiFi2.4G/5.8G
StorageTF card
Video Encodec
Maximum resolution3840x2160P
Encoding LevelsH.265 Main profile, H.264 High profile / Mainprofile / Base line
Bitrate controlVBR / CBR
FPS4K: 25/30 fps ; 1080P: 25/30/50/60 fps
Audio
InputBuilt-in two-channel microphone
Built-inLoudspeaker
StorageTF card
EncodingAAC
Sample Rates44.1kHz, 48.0 kHz
Power
Power supplyDC5V 2A
Battery Capacity8000mAh
Maximum consumption8W
System
Control PaneliOS / Android APP
Firmware Updatesupports
Working Environment
Operating temperature-20 to 80 deg C
Storage temperature-40 to 90 deg C
Relative Humidity5% to 90% non-condensing
Dimension & Accessories
Dimension130mm*60mm*80mm
Weight400g

Mine A5 Solution

🏔️ Outdoor Adventures & Exploration

-Live stream hikes, mountain climbs with stable connectivity.

-Document wildlife or scenic views.


🚴 Sports & Extreme Activities

-Cycling, Skiing, Surfing: Capture high-speed action without motion blur.

-Marathons & Races: Broadcast POV footage to fans in real time.


🎥 Live Events & Broadcast Journalism

-Sports Competitions: Provide instant replays and multi-camera angles.

-News Reporting: Stream breaking events from remote locations.


🔍 Research & Education

-Wildlife Studies: Live streaming animal behavior without disturbance.

-Adventure Education: Teach survival skills via live demonstrations.


A5-Package list

WHAT’S IN THE BOX


Package includes:
A5 4G Bonding Streaming Camera *1
Protective handbag *1
USB Type-C cable *1
USB Adapter *1
Manual *1

Mine A5 Size

Contact us for more information
