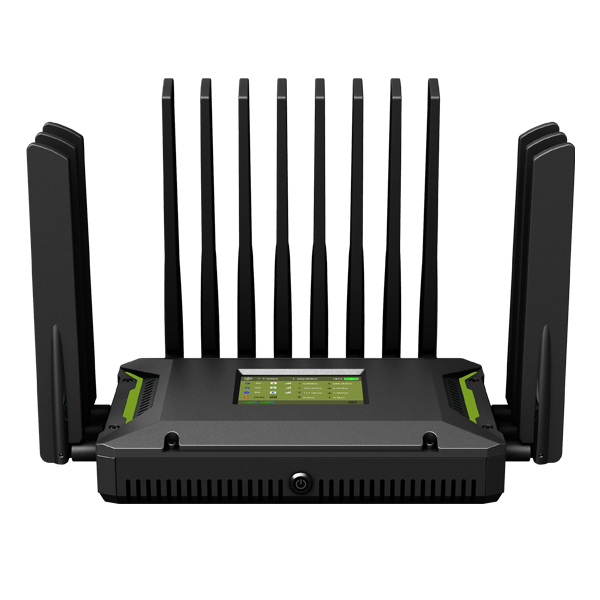

C3 5G Cellular Bonding Router

 Cellular Bonding
C3 5G Cellular Bonding Router
Superior Connectivity, Uninterrupted Streaming
The Cedar Router - C3 Cellular Bonding Router by MineMedia is a cutting-edge solution designed for professional live streaming and mission-critical communications. By intelligently aggregating multiple cellular connections (4G/5G), the C3 delivers ultra-reliable, high-bandwidth internet connectivity - perfect for broadcasters, live event producers, and field reporters.

Key Features
✅Multi-Carrier Bonding – Combines multiple SIM cards (from different carriers) for maximum speed and redundancy. 3*5G Module or 1*5G + 2*4G Module 5G Bonding Router.
✅Seamless Failover – Automatically switches to the best available network to prevent dropouts.
✅Low Latency – Optimized for real-time video streaming, remote production, and live broadcasts.
✅Portable & Easy to Use – Compact, rugged design for field deployment with intuitive controls.
✅Advanced QoS (Quality of Service) – Prioritizes video and audio data to ensure smooth transmission.

Ideal Applications
-Live News & Sports Broadcasting – Never miss a critical moment due to poor connectivity.
-Drone & UAV Operations – Stable video feeds for aerial filming and inspections.
-Emergency & Public Safety – Reliable comms for first responders in remote areas.
-Corporate & Event Streaming – High-quality live streams for conferences and webinars.

Why Choose C3?
Unlike single-modem solutions, the C3 ensuresunbreakable connectivity by leveraging multiple cellular networks simultaneously. Whether in urban areas with congestion or remote locations with weak signals, the C3 keeps your stream alive.
Superior Connectivity, Uninterrupted Streaming
bandwidth-icon
5G Bonding Router - Bandwidth bonding combines data at the packet level, allowing you to aggregate the speed of multiple connections. This is particularly useful in bandwidth-scarce situations, such as at remote sites or in moving vehicles. The technology also enables branches to connect to headquarters at higher speeds.
fec-icon
FEC is designed to provide packet loss protection while minimizing bandwidth consumption. When WAN replicates actual packets smoothly, FEC sends additional reserved packets that can be used to mitigate the impact of packet loss through interpolation.
LAN-ico
In real-world work environments, there is often a need to access remote data, such as live broadcasting and remote offices. This technology seamlessly combines networks from different LANs.

C3-5G-Aggregation-Router-Application

C3 Cedar Router - Cellular Bonding Router

ModelC3
Name5G Cellular Bonding Router
CPUQualcomm ARM-A53 Quad-Core CPU 1.8GHz (Qualcomm IPQ6010)
DDR4 Memory2GB
SPI flash8MB
EMMC4GB
5G/4G LTE Module Quantity3*5G Module or 1*5G + 2*4G Module
Wifi62.4GHz(600Mpbs) + 5.8GHz(1200Mbps)
Ethernet4 RJ45 Gigabit Ethernet ports, total wired network bandwidth 6.25Gbps
LCD Display3.5-inch SPI IPS color display, with battery level, network speed,server address,WiFi status,etc.
Backend ManagementSupport Web-end Management or HTTP API third-party docking
Power AdapterDC/12V 3A
Power Consumption8-15W
Battery Capacity8.4V * 10000mAh(84WH)
Operating Time6-8 hours, depending on the usage environment

Ideal Applications

-Live News & Sports Broadcasting – Never miss a critical moment due to poor connectivity.

-Drone & UAV Operations – Stable video feeds for aerial filming and inspections.

-Emergency & Public Safety – Reliable comms for first responders in remote areas.

-Corporate & Event Streaming – High-quality live streams for conferences and webinars.
